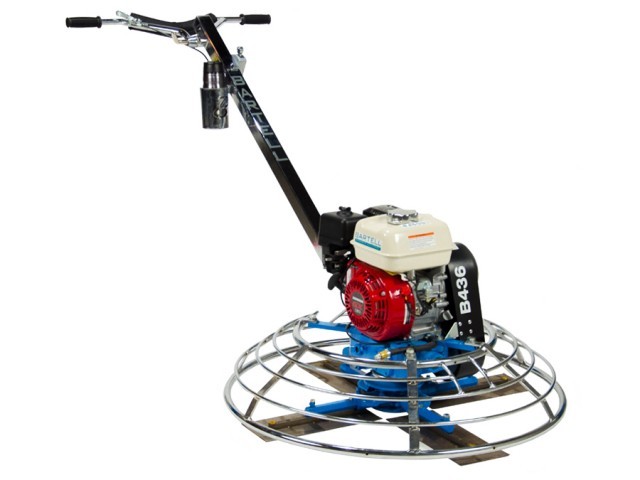

B436 Walk-Behind Trowel

THE MACHINE THAT STARTED IT ALL! Bartell’s line of power trowels has been the gold standard in the industry for decades! High-quality and precision-balanced construction
provide smooth, easy operation. The chrome plated safety ring will catch your eye, but the robust gear box “under the hood” and 3-year warranty set the PRO line apart from the rest.

B436 Walk-Behind Trowel

Specifications

Power Output 4.8hp (3.6kW) 8.5hp (6.3kW)
Max Blade Speed 132 rpm 125 rpm

Features and Benefits

  • Precision balanced for smooth, easy operation
  • Robust gear box with high tensile steel shafting for long life
  • Cast iron spider assembly and precision ground arms for tight tolerances and faster troweling
  • Includes blades (combination or finishing)
  • Chrome plating for easy clean-up
  • Centrifugal safety switch
  • Throttle control on handle
  • Hoist hook and Pro-pitch available as optional upgrades
  • Optional muffler for safe indoor use

Dimensions

Float Blade Size 10" x 14" (25cm x 36cm)
Finish Blade Size 6" x 14" (15cm x 36cm)
Combo Blade Size 8" x 14" (20cm x 36cm)
Float Pan 36.5" (93cm)
Length 65.5" (166cm)
Width 37.5" (95cm)
Height 36" (91cm)

Engine

Honda GX160 Honda GX270

Weight

Weight 162 lbs (73kg)
