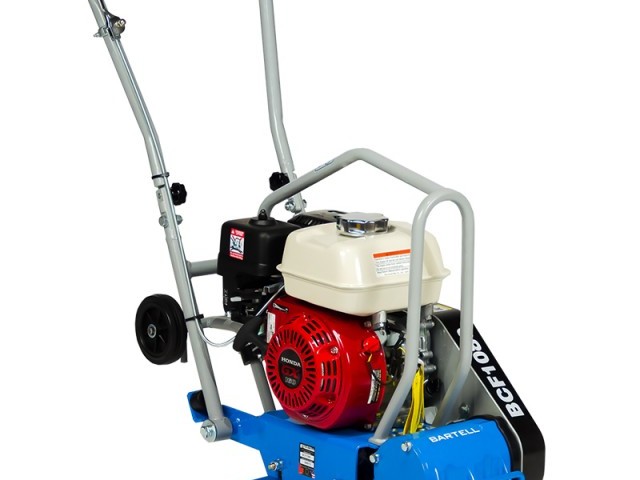

BCF1080 Forward Compactor

OVER 2000 LBS OF COMPACTION FOR LIGHT APPLICATIONS. The BCF1080 is the smallest compactor that Bartell offers and is perfect for light compaction applications. Because
of its size, the BCF1080 Forward Plate Compactor can be moved easily around the job site.

BCF1080 Forward Compactor

Features and Benefits

  • ROBUST THROTTLE CONTROLS - Why should you have to bend over and run next to your machine to make it stop? You’ll find conveniently mounted throttle controls standard on every piece of compaction in our lineup.
  • RETRACTABLE WHEEL KITS - Easily move your equipment to the site. Flip the wheels down and roll. They simply lock up when you don’t need them.
  • LIFTING BALES - Every plate compactor in our line has a robust lifting bale to make it easier to move your equipment when a wheel kit won’t do.
  • CLOSE TO THE EDGE - Need to compact close to an edge? You can get right up against it with our straight-edge plate design.
  • SEALED BELT GUARDS - Sometimes a single rock is all it takes to throw a belt. Our sealed cover design keeps rocks out and still cools properly.

Dimensions

Spec GX160
Power Output 4.8hp (3.6kW)
Compaction Force 2381 lbf / 10.5 kN / 1080 kgf
Max Travel Speed 82'/min (25m/min)
Length 28" (711mm)
Width 16" (406mm)
Height 23" (584mm)
Plate Size 14" x 22" (36 cm x 56 cm)
Base Material Cast Iron

Engine

Honda

Weight

132lbs (60kg)
