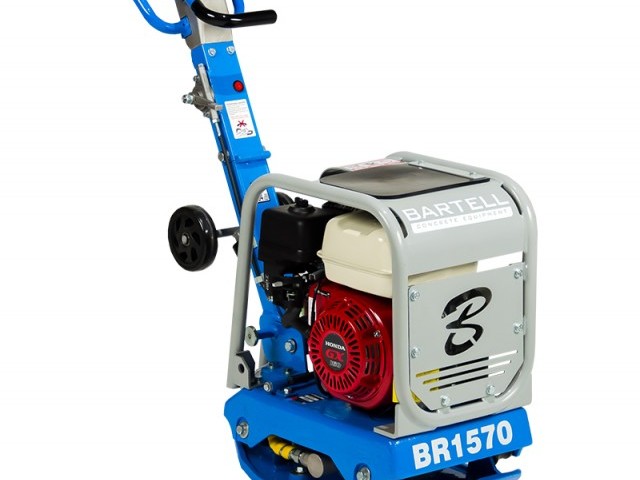

BR1570 Reversible Compactor

ONE OF THE MOST COMPACT & COST-EFFECTIVE REVERSIBLE PLATES. Bartell’s smallest and most versatile reversible plate compactor. This unit can easily stand in place of many popular forward plates because of the comparative cost, but you get the increased production of the reversible feature.

BR1570 Reversible Compactor

Specifications

Spec GX160
Power Output 4.8hp (3.6kW)
Compaction Force 3461 lbf / 15 kN / 1570 kgf
Max Travel Speed 65'/min (20m/min)
Base Material Ductile Iron

Features and Benefits

  • Smallest reversible compactor on the market today
  • Fully hydraulic reversing mechanism with flexible maneuverability allows the machine for forward, backward, and spot-on compaction
  • Cast aluminum throttle lever for a more professional, stronger, and durable for tamping
  • Full roll cage and built in lifting bale for increased engine and guide hook protection
  • Cast aluminum belt cover for increased clutch and engine longevity
  • Ductile iron bases for increased strength
  • Wheels that attach and flip down for easy transportation (on some models)
  • Optional extension plates and urethane mat options available (on some models)
  • Full speed in both forwards and reverse
  • Specialized for compacting sand, trench, and patching

Dimensions

Length 35" (880mm)
Width 14" (350mm)
Height 35" (880mm)
Weight 177lbs (80kg)
Plate Size 14" x 19" (35 cm x 48 cm)

Weight

177lbs (80kg)
