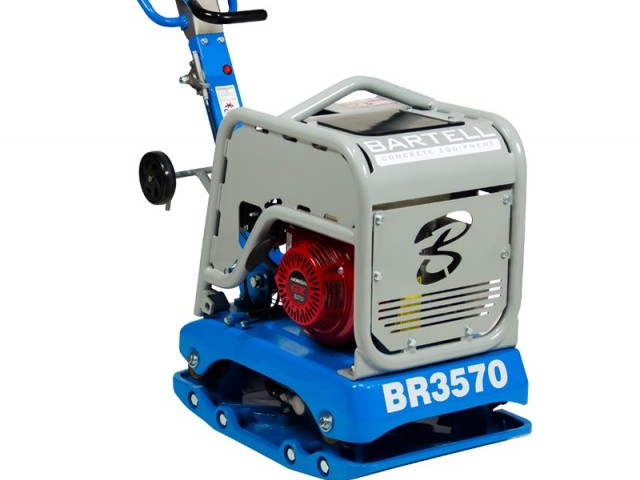

BR3750 Reversible Compactor

PACKS A PUNCH WITH OVER 7500 LBS OF COMPACTION FOR MEDIUM SIZE APPLICATIONS. With high-quality construction, Bartell compaction can stand up to whatever your
job requires. The Bartell BR3570 provides moderate compaction force and larger plate size which accomplishes larger footprints quickly and effectively. The optional
extension kit adds efficiency by enlarging the compaction area.

BR3750 Reversible Compactor

Features and Benefits

  • Fully hydraulic reversing mechanism with flexible maneuverability allows the machine for forward, backward, and spot-on compaction
  • Cast aluminum throttle lever for a more professional, stronger, and durable for tamping
  • Full roll cage and built in lifting bale for increased engine and guide hook protection
  • Cast aluminum belt cover for increased clutch and engine longevity
  • Ductile iron bases for increased strength
  • Wheels that flip down for easy transportation
  • Optional extension plates and urethane mat options available
  • Full speed in both forward and reverse
  • Specialized for compacting sand, trench, and patching

Dimensions

Power Output 8.5hp (6.3kW)
Compaction Force 7850 lbf / 35 kN / 3570 kgf
Max Travel Speed 52'/min (16m/min)
Length 53" (1340mm)
Width 18" (450mm)
Height 38" (960mm)
Weight 529lbs (240kg)
Plate Size 18" x 28" (45 cm x 70 cm)
Base Material Ductile Iron

Engine

Honda

Weight

529lbs (240kg)
