Products & Equipment  /  Br4600 Reversible Compactor
Bartell Global

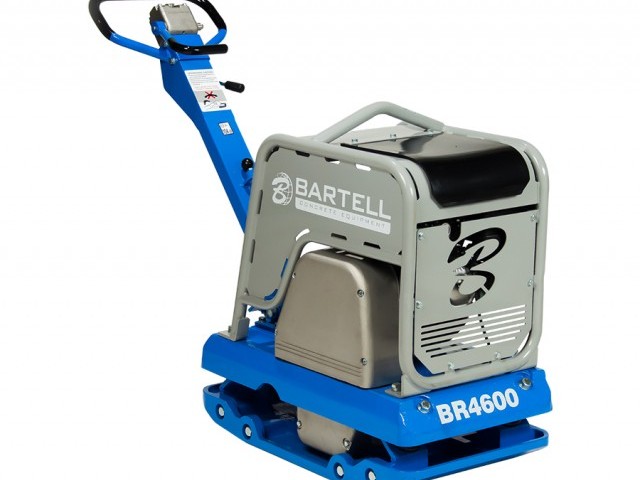

Br4600 Reversible Compactor

10,000 LBS OF COMPACTION FORCE TO CONQUER MEDIUM & LARGE JOBS QUICKLY. With high-quality construction, Bartell compaction can stand up to whatever your job requires. The BR4600 Reversible Compactor is built for medium – large applications. Equipped with either a Honda GX390 or Yanmar Diesel engine, it has the power and force to effectively compact deep base material properly.

Br4600 Reversible Compactor

Features and Benefits

  • Fully hydraulic reversing mechanism with flexible maneuverability allows the machine for forward, backward, and spot-on compaction
  • Cast aluminum throttle lever for a more professional, stronger, and durable for tamping
  • Full roll cage and built in lifting bale for increased engine and guide hook protection
  • Cast aluminum belt cover for increased clutch and engine longevity
  • Ductile iron bases for increased strength
  • Wheels that flip down for easy transportation
  • Optional extension plates and urethane mat options available
  • Full speed in both forward and reverse
  • Specialized for compacting sand, trench, and patching
  • Diesel model offers key start or recoil start

Dimensions

Power Output 8.6hp (6.3kW) 9.3hp (6.9kW)
Compaction Force 10,141 lbf / 45 kN / 4600 kgf
Max Travel Speed 72'/min (22m/min)
Length 62" (1570mm)
Width 19" (485mm)
Height 37" (930mm)
Weight 772lbs (350kg)
Plate Size 19" x 34" (48 cm x 86 cm)
Base Material Ductile Iron

Engine

Honda (Gas) Yanmar (Diesel)

Weight

772 lbs (350kg)
