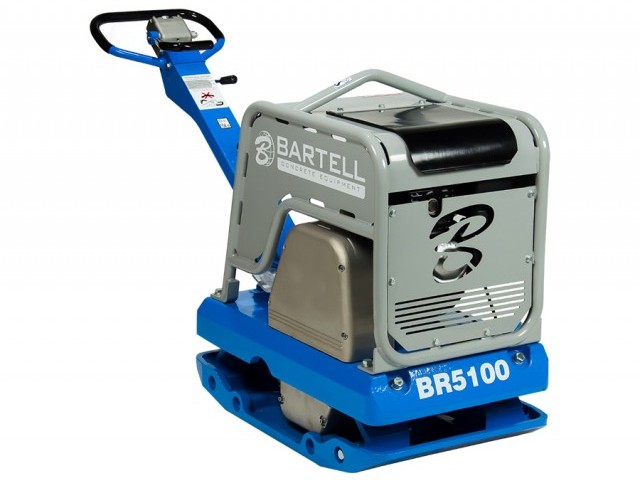

BR5100 Reversible Compactor

THE BIGGEST AND HARDEST COMPACTOR IN OUR SERIES!

BR5100 Reversible Compactor

Features and Benefits

  • Fully hydraulic reversing mechanism with flexible maneuverability allows the machine for forward, backward, and spot-on compaction
  • Cast aluminum throttle lever for a more professional, stronger, and durable for tamping
  • Built in lifting bale for increased engine and guide hook protection
  • Cast aluminum belt cover for increased clutch and engine longevity
  • Ductile iron bases for increased strength and durability
  • Optional extension plates available
  • Full speed in both forwards and reverse
  • Key start or recoil start

Dimensions

Power Outpit 9.3 hp(6.9kW)
Compaction Force 11244 lbf. 50 kN 5100 kgf
Max Travel Speed 75’/min (23m/min)
Width 20” (500mm)
Height 37” (930mm)
Length 65” (1610mm)
Weight 1036lbs (470kg)
Plate Size 20” x 36” (500mm x 900mm)

Engine

Yanmar

Weight

1036 lbs (470kg)
