Products & Equipment  /  Wacker Neuson G70 Portable Generator
Wacker Neuson

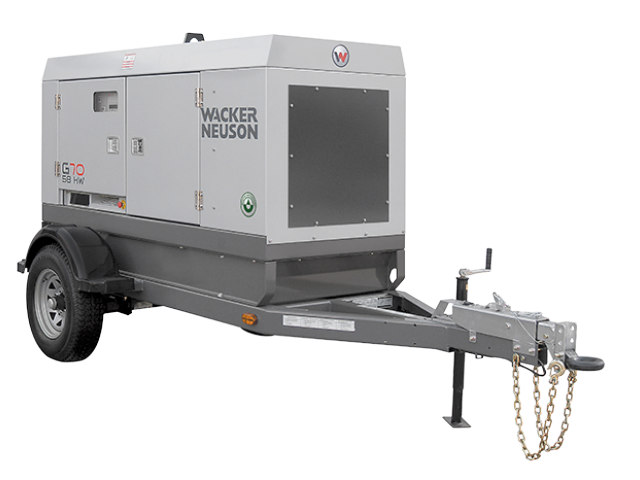

Wacker Neuson G70 Portable Generator

The G70 is an excellent mid-range mobile generator to meet all your market and job site needs. The compact, sound-attenuated model provides single and three-phase power for construction, commercial, industrial and special event applications where quiet power is needed. A digital controller monitors and protects the generator and engine while providing continuous operating data on an easy to read LCD display. The durable features provide a long lasting and quality appearance and the large fuel tanks offers convenient long run times.

Wacker Neuson G70 Portable Generator
  • Ideally suited for construction sites where durability, reliability, and flexibility are required to supply continuous power to applications such as lighting, cranes, concrete mixers, and conveyor belts.
  • Brushless, oversized alternators with separate excitation winding and AVR (Automatic Voltage Regulation) provide superior motor starting and enhanced ability to run non-linear loads.
  • Single switch start and simple, uncluttered control panel provide unmatched ease of use.
  • Automatic remote start capability standard which is ideal for temporary standby applications.

Specifications

Dimensions
L x W x H Operating (Skid): 96.25 x 38 x 53 inches
L x W x H Shipping (Skid): 100 x 40.5 x 65.1 inches
L x W x H Shipping/Operating (Trailer): 160 x 67.5 x 80 inches

Weights
Weight Dry (Skid): 3,464 lbs
Weight Operating (Skid): 4,069 lbs
Weight Shipping (Skid): 3,620 lbs
Weight Operating (Trailer): 4,949 lbs
Weight Shipping (Trailer): 4,344 lbs

Features and Benefits

Operating Data

  • Trailer Coupling Type: Pintle
  • Standby Output: 63 kW
  • Prime Output: 58 kW
  • Voltage 3 Phase: 240/480 V
  • Current 3 Phase (Prime): 174/87 A
  • Current 1 Phase (Prime): 120/240 A
  • Voltage 3 Phase: 208, 220, 240, 416, 440, 480 V
  • Voltage 1 Phase: 120, 127, 139, 240, 254, 277 V
  • Circuit Breaker (Main): 225 A
  • Frequency: 60 Hz
  • Receptacles -20 Amp GFI Duplex: 2
  • Receptacles -50 Amp Twist Lock: 3

Engine/Motor

  • Engine/Motor: Liquid-Cooled, 4 Cylinders
  • Engine/Motor Manufacturer: John Deere
  • Emissions Certified: Tier 3
  • Displacement: 275 cubic inches
  • Operating Performance SAE J1995, ISO 8528-1: 99 hp
  • At RPM: 1,800 rpm
  • Coolant Capacity: 20 qt
  • Engine Oil Capacity: 15.9 qt
  • Fuel Type: Diesel
  • Fuel Consumption (Prime Load): 4.9 gal/h
  • Tank Capacity: 84 gal
  • Quantity (Battery): 1
  • Battery: 12 V
  • Generator Model: Mecc Alte, Brushless w/AVR
  • Voltage Control No Load to Full Load: 1%
  • Voltage Control Stead State: 0.2%
  • Generator Insulation (Class): H
  • Frequency (Generator Speed): 60 Hz
  • Runtime at 100% Prime Load: 15.3 hours
  • Runtime at 75% Prime Load: 19.5 hours
  • Runtime at 50% Prime Load: 28.4 hours
  • Runtime at 25% Prime Load: 49.5 hours
