Products & Equipment  /  Wacker Neuson IRFU 57 High Frequency Vib
Wacker Neuson

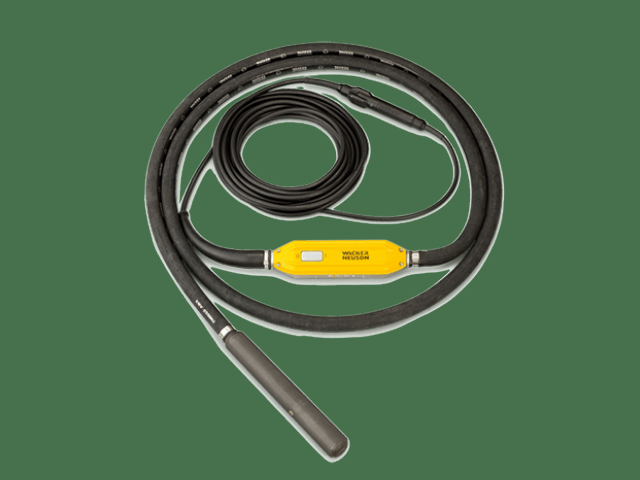

Wacker Neuson IRFU 57 High Frequency Vib

The high-frequency internal vibrators of the IRFU range share one main characteristic: They simply connect to the 1-phase power supply and are ready to use. Quick, simple, and flexible, it’s ideal for independent operation.

Wacker Neuson IRFU 57 High Frequency Vib

An integrated frequency converter is especially useful for work on large surfaces. In contrast to normal interval vibrators, where you need to carry the frequency converter from place to place when compacting a large area, Wacker Neuson’s IRFU range have the advantage that the frequency converter is already integrated within the device. Just connect the device to a 1-phase power supply and IRFU compacts immediately. The user simply pulls the device with the converter along behind him, and this is entirely safe due to the completely sealed electronics.

Specifications

• Diameter of the Vibrator Head: 2.2 inches
• Length of the Vibrator Head: 15.8 inches
• Weight of the Vibrator Head: 12.8 inches
• Operating Weight: 43.7 pounds
• Effective Diameter: 33.5 inches
• Vibrations: 12,000 rpm
• Engine/Motor: High-frequency squirrel cage motor with integrated electronic frequency converter in the switch housing
• Voltage: 120
• Current: 12 A
• Frequency: 50 - 60 Hz
• Hose Available Lengths: 16.4 - 26.25 - 32.8 feet
• Power Cable: 49.2 feet
• Feed Cable: 1.6 feet

Features and Benefits

  • Integrated frequency converter
  • Reliable operation even if the input voltages fluctuate and when used with generators
  • Non-wearing converter due to sealed electronics
  • Rubber coated head model designed for use with epoxy rebar
  • Available in different hose lengths and voltages.
