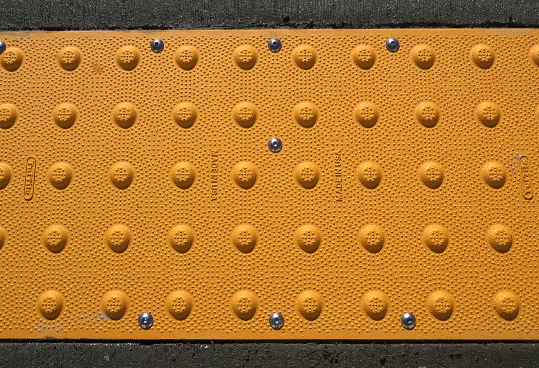

Cast Iron Wet Set ADA Tactile Tile

TufTile’s Cast Iron ADA Tactile Tiles are manufactured domestically with durable cast iron that offers exceptional performance characteristics. TufTile detectable warning products are designed with features that will ensure years of trouble-free performance.

Cast Iron Wet Set ADA Tactile Tile

Cast Iron Wet Set (cast-in-place)

Patent No. US D691,743 S

TufTile’s Cast Iron ADA Tactile Tiles are manufactured domestically with durable cast iron that offers exceptional performance characteristics. TufTile detectable warning products are designed with features that will ensure years of trouble-free performance.

TufTile’s Cast Iron ADA Tactile Tiles

  • Compliant with ADAAG / PROWAG / CA Title 24
  • Durable rust resistant finish on all tile color options
  • Great for use in areas where heavy tile abuse is possible including areas subject to snowplowing
  • ADA compliant wet & dry slip-resistant surface
  • Cast iron wet-set tiles are for new construction
  • Unique “umbrella” style anchors lock tile securely into concrete
  • Uniform tile underside eliminates trapping air during installation
  • Made in USA
  • Patent No. US D691,743 S

Features and Benefits

Fastening System/Accessories

Unlike flat bottom type wet set anchors, TufTile’s umbrella style anchor easily penetrates wet concrete. Aggregate within the concrete is not pushed down but moves to the side temporarily as the anchor penetrates. Aggregate can then fall back over the umbrella and the anchor becomes firmly integrated with the concrete.

Wet-set anchors are permanently locked in wet concrete. TufTile wet-set tiles are REPLACEABLE and wet-set anchors can be used multiple times in the event a tiles needs to be replaced

  • Molded from a super tough polymer, wet-set anchors are corrosion-proof
  • Self-threading fastener ports hold-tight with our #14 tamper-resistant stainless steel weather-resistant screws
  • Anchors & fasteners are factory pre-installed on tiles
  • Our “umbrella” style anchor easily penetrates into wet concrete mix

Cast Iron Polymer Connectors

  • Simplify installation by connecting cast iron tiles together
  • Create a single unit of a couple tiles for perfect alignment

Replaceability

  • TufTiles are replaceable. Replacement is an economic alternative to concrete replacement
  • Anchor holes and panel depth is uniform between products. TufTile Wet-Set tiles and Surface-Applies are designed to last for years in normal wear & tear, urban environments We recognize that abnormal things can happen and at times tiles may need to be replaced. The fact that TufTiles are replaceable offers a community or private property owner a longer life-cycle cost savings vs a concrete tear-out and re-pour

Dome Layout

  • In-Line truncated domes comply with all ADA specifications
  • North-South & East-West spacing is 2.35”
  • The TufTile name is molded into every part identifying us as the manufacturer for future reference
  • Occasionally, detectable warning tiles will need to be butted together to form longer and wider surfaces. TufTile remain ADA compliant when tiles are properly butted together

Colors

Yellow and Brick Red are stock colors, others available by request
Yellow and Brick Red are stock colors, others available by request

Made in the USA

  • Domestically produced iron is cast in USA to comply with all Federal, State, and local sourcing requirements for metal products - BUY AMERICAN compliant
  • TufTile supports all claims with sourcing and production documentation that is often required by governmental procurement departments

Cast Iron Packaging

  • Packaged 26 per skid. With anchor supports between each panel
  • Panels come with bi-lingual installation instructions and protective sheeting on each tile
  • Corner blocking protects the outside edges from damage during shipping
  • Skid and panels are wrapped in protective film with label affixed to the side

Radius

TufTile® Radii are made by using wedges and tiles in any combination. Visit the Radius Solutions page to determine the exact size of your radius, materials and configuration

.

Need to create a radius on your project? Use this handy online tool.
Need to create a radius on your project? Use this handy online tool.

Dimensions

2' x 2' STOCK
Other sizes available by order

Color

Yellow, Brick Red (others available through special order)
